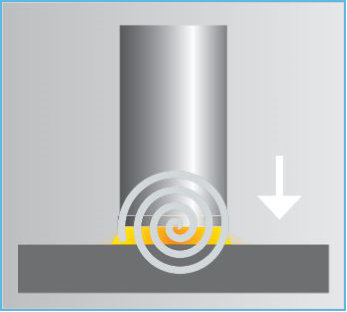

2. Arc is guided in a spiral through the magnetic field and melts both join parts on their entire surface.
COMPART Z.Dziembowski Stud & Nut Welding - SRM2 - arc is guided in a spiral through the magnetic field (www.soyer.co)
P.T.H. “COMPART” Z.Dziembowski   |   Tel./Fax: (+48) 322 380 680   |   Email: compart (at) soyer.info.pl

 Link to:  BMS-4   -   BMS-8N   -   BMS-9   -   BMS-10N   -   HesoMatic-9   -   BMK-8i   -   BMK-12i   -   BMK-12W   -   BMK-16i   -   BMH-22i   -   BMH-30i

PL  |  EN  |  DE

DETAILS OF SRM STUD WELDING

WITH A ROTATING MAGNETIC FIELD

The patented SRM stud welding process in the radial symmetrical magnetic field (patent no.: 10 2004 051 389) in conjunction with the innovative HZ-1 universal weld stud featuring a plane end face and centering tip enables the safe and clean welding of weld studs up to M16. In this process, the use of ceramic rings is no longer needed (50% less welding energy in comparison with ceramic ferrule welding). The ratio between minimum sheet thickness and stud diameter is 1:10 instead of 1:4 as previously. For the first time it is possible to generate high-quality welds of V2a commercial nuts M5 – M12 on punched and unpunched metal sheets. This procedure opens up whole new possibilities especially in automated stud welding plants and large-scale component production.

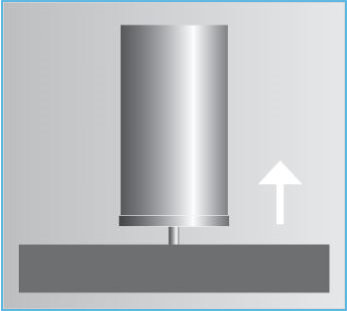

1. The stud is placed into contact with the workpiece and is raised. The arc is triggered.
COMPART Z.Dziembowski Stud & Nut Welding - SRM1 - contact with the work-piece (www.soyer.co)

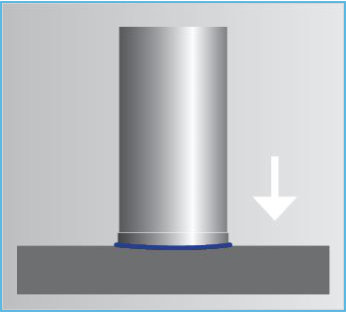

3. The stud is immersed in the very flat penetration zone and is inseparably connected.
COMPART Z.Dziembowski Stud & Nut Welding - SRM3 - stud is immersed in the very flat penetration zone (www.soyer.co)
COMPART Z.Dziembowski Stud & Nut Welding - SRM Technology (www.soyer.co)
